Tuning the Rig
Marek Janiec

Here is a simple mast tuning guide that will give you a good basic trim for an IF-boat mast. No gauges are needed for this procedure.
  1. Adjust the mast rake to 0.25 - 0.35 metres (10 - 14 inches), measured horizontally at the lower mast spar band (along the boom). To determine this vertical line, hang a small anchor weight or similar heavy object from the mainsail halyard.
    When measuring the rake, heavy items such as batteries, filled water tanks, outboard motors, etc., should be removed from the boat. As an alternative, all the heavy items may be placed on the cabin floor, just aft of the hanging locker(s).

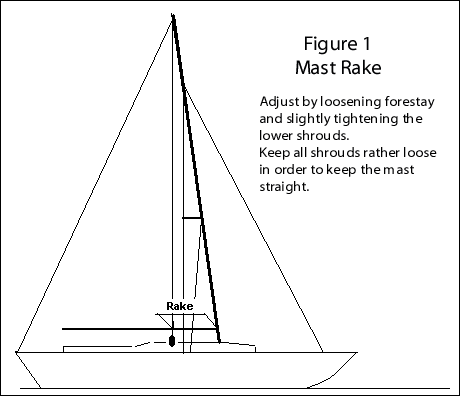

    Only one person should be on board and he or she should stand on the cabin roof just aft of the mast. (see Figure 1)
  2. After the proper rake has been established, connect the mainsail halyard shackle to the boom fitting as close as possible to the aft side of the mast. You will use the mainsail halyard as the straight reference line between the mast top and the lower spar band. Do not keep the halyard tightened during adjustment, but only when determining the mast bend as per (3.) and (4.) below.
  3. Bend the mast by tightening the upper shrouds so the bend at spreader height is about equal to the mast spar longitudinal dimension (about 0.13 metres or 5 inches).

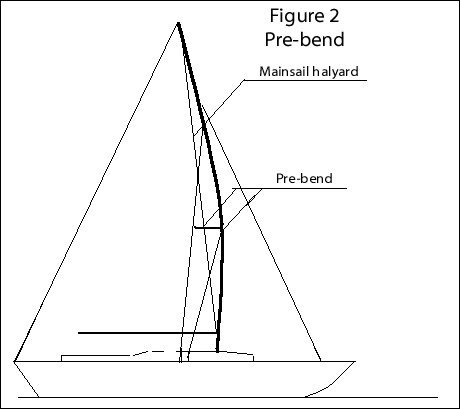

  4. Tighten the lower shrouds so that the bent mast is going back to only about 0.03 - 0.05 metres (1 to 2 inches). Be sure to check the straightness of your mast by frequently eyeing up the sail track. (see Figure 2) The shroud tension measured by a tension gauge, should now be something like 300-450 kp (660 to 990 lbs.) for the upper shrouds and 130-200 kp (290-440 lbs.) for the lower shrouds (regardless of shroud diameter).
